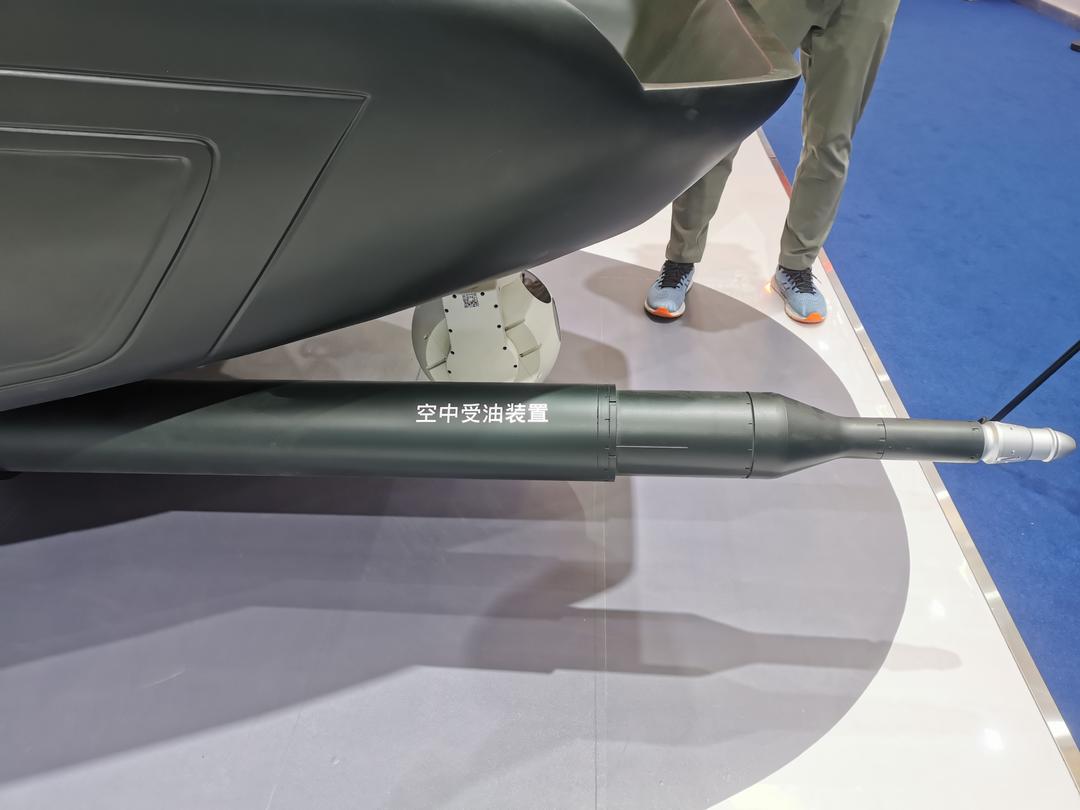

The aerial refueling technology for helicopters is poised to significantly enhance their long-range deployment capabilities. During the recently concluded Tianjin Helicopter Expo, a novel helicopter aerial refueling apparatus made its debut, catching this author’s attention.
Videos from the CCTV military coverage of the Tianjin Expo showcased this aerial refueling device for helicopters. This is the first time that China has publicly revealed such technology, sparking widespread interest in its potential. So, how does this differ from the aerial refueling technology of conventional fixed-wing fighter jets? And what implications does it hold for helicopters?
The Role of Aerial Refueling for Helicopters
To understand the significance of aerial refueling for helicopters, one can look to a historical example. In December 1989, during the US invasion of Panama, US Special Forces flew three MH-47D transport helicopters from the US Campbell Fort Military Base. After two aerial refuelings, they arrived in Panama to commence operations, covering a distance of nearly 3,000 kilometers. This operation showcased the advantages of helicopter aerial refueling.
The US was the pioneer in exploring this technology, primarily due to challenges faced during the Vietnam War. Several downed aircraft and stranded crews relied heavily on rescue helicopters. However, long-range rescue missions deep within enemy territory, especially in mountainous regions, posed fuel limitations. Initially, the US experimented with helicopter-to-helicopter refueling. Later, they shifted their focus to fixed-wing transport aircraft adapted for this purpose. By December 1965, combining a C-130F and a CH-3C, the US validated the aerial refueling technology for helicopters, leading to the development of the specialized KC-130P refueling aircraft. In 1967, two HH-3E helicopters, utilizing aerial refueling, flew non-stop from New York to Paris in nine hours, setting a record for the longest helicopter flight both in terms of distance and duration.
When it comes to aerial refueling in China, many might recall the recent spotlight on the Y-20 refueling aircraft. At the 2023 Air Force Aviation Open Event in Changchun, the Y-20 refueling aircraft, along with the advanced J-20 and J-16 fighter jets, took center stage. The Y-20 serves as the latest aerial refueling equipment for China, substantially enhancing the strategic capabilities of the Air Force.
While the Y-20 is primarily used for refueling J-20 and J-16 fixed-wing fighter jets, this aerial refueling technology has been in China’s arsenal since the 1990s. It was frequently showcased during national day parades, with images of the H-6 refueling aircraft alongside J-8 or J-10 fighter jets frequently appearing in the media. But public information on helicopter aerial refueling remained scant until now.
One of the significant benefits of aerial refueling for helicopters is the extension of fuel range, increased air-time, operational radius, and long-range deployment capabilities. Furthermore, aerial refueling eliminates several ground-based refueling challenges. This flexibility is especially beneficial for helicopters undertaking missions related to early warning, anti-submarine warfare, air command, and long-range deployment.
Challenges in Helicopter Aerial Refueling
While aerial refueling offers numerous benefits for helicopters, only a few countries have mastered this technology. The main challenge lies in its complexity. The helicopter’s rotor blades and its relatively low flight speed make aerial refueling more intricate than for fixed-wing aircraft.
Successfully implementing this requires addressing several challenges. The refueling apparatus must be situated outside the rotor’s radius without affecting the helicopter’s structural integrity or performance. Furthermore, the equipment’s weight and design should minimally impact the helicopter’s load capacity and flight capabilities. Typically, the refueling tube extends a meter beyond the rotor, and its diameter should be large enough to fill the fuel tank within 5-6 minutes.
Given the challenges and the weight of the refueling equipment (typically between 200 to 300 kilograms), only medium to large helicopters have expressed interest in this technology. The performance implications on smaller helicopters would be substantial for minimal benefits.
Owing to their slower flight speeds, helicopters also place specific demands on refueling aircraft, which need to maintain a lower speed during the refueling process. The US predominantly uses the KC-130 refueling aircraft, which maintains an optimal speed between 204 to 220 km/h for helicopter refueling.
In terms of the refueling method, the flexible “hose and drogue” system is more suitable for helicopters compared to the rigid system. While fixed-wing aircraft use both methods, helicopters predominantly use the flexible system.
With China already equipped with flexible aerial refueling aircraft and the medium transport aircraft Y-9, which is comparable to the C-130, the unveiling of the helicopter refueling apparatus at the Tianjin Expo sets the stage for future advancements in this domain.
